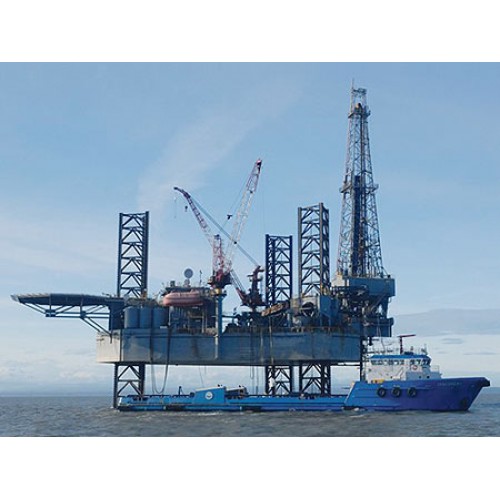

278' Jack Up Drilling Rig – Self Elevating
Product Code: ANIL.72007-27
Availability: In Stock
Availability: In Stock
$1,200,300.00
Ex Tax: $1,200,300.00
Ex Tax: $1,200,300.00
| Length: 278' | Beam: 197' | Draft: 17' | Class: ABS | ||||
| Details: 278' Jack Up Drilling Rig - Self Elevating For Sale Rig Type : Friede & Goldman Super-M2 Class Unit / Design / Shape : Independent Leg, Cantilever Jack-up, Triangular Unit Classification : ABS, XA1, Self Elevating Drilling Unit Year of construction : 2010 Construction yard : UAE Main Dimensions / Technical Description Load line draft : ft 17 Displacement at loadline : ton 12100 Overall length of unit (including helideck) : ft 278 Overall width of unit (including anchor racks) : ft 197 Hull length : ft 196 Hull width : ft 183 Hull depth : ft 25 Main deck to top of jack tower : ft 21 Gross registered tonnage : ton 6880 Net registered tonnage : ton 2064 Legs and Spud Cans Number of legs/length : no/ft 3 / 411 Independent leg or mat : Independent Leg Leg length available below hull (5' reserve above jack tower) : ft 360 Type of leg : Triangular Truss Leg spacing (center to center): - Transverse : ft 120 - Longitudinal : ft 115 - Bow leg center to bow (frame '0') : ft 46 - Aft leg centers to stern : ft 35 Spud can depth : ft 15 Spud can diameter : ft 50 Spud can volume (each can) : ft3 318 Minimum projection of legs below hull : ft 0 Normal projection of cans below hull during tow - Field : ft 1.96 - Ocean : ft 1.96 - Shallow water : ft 1.96 - Minimum : ft 0 Spud can jetting system: - Connection to mud pumps : 6 " Risers in legs - Bottom jets : 1-1/2" - Top jets : 1-1/2" - Pressure rating : psi 1500 Drill floor Length : ft 50.52 Width : ft 75.65 Height above main deck : ft 34.7 Height above keel : ft 59.7 Height above Texas deck - When hung on cantilever : Variable - When setting on storage beams Travel Port / Stbd : ft 15 Rotary in stowed position (from frame '0') : ft 146 Rotary travel beyond transom - w/ cantilever extension : ft 50 Cantilever Cantilever or slot : Cantilever Skid-off : No Total beam length : ft 118.5 Cantilever beams center-to-center : ft 60 Main deck to top of cantilever beam : ft 16.40 Pipe rack deck above main deck : ft 16.40 Pipe rack deck length : ft 57 Pipe rack deck width : ft 61,68 Cantilever travel fore and aft - w/ cantilever extensions : ft 65 Total rack length : ft 47.25 Longitudinal skid speed : ft/hr TBD Cantilever envelope: - Reach aft / with extensions : ft 50 ft Maximum drill floor/cantilever combined load (combined hook + rotary + setback + tensioner) : kips 2,200 Maximum hook load : kips 1,500 Maximum rotary load : kips 1,700 Maximum setback load : kips 750 Maximum pipe rack load : kips 600 Maximum setback skidding load : ton 750 Maximum pipe rack load skidding load : ton 500 | |||||||
